ZhiSheng Series WSC 600DJ/800DJ/1000DJ

Delta Robot-ZhiSheng Series-WSC 600DJ/800DJ/1000DJ

Speed

60-120times/Minute

Payload

3kg

Single -Phase

AC 220V -15~+10% ,50/60Hz

Automatic Sorting and Packing

Visual Positioning

Repeat Positioning Accuracy

±0.05mm

Brochure Send Request

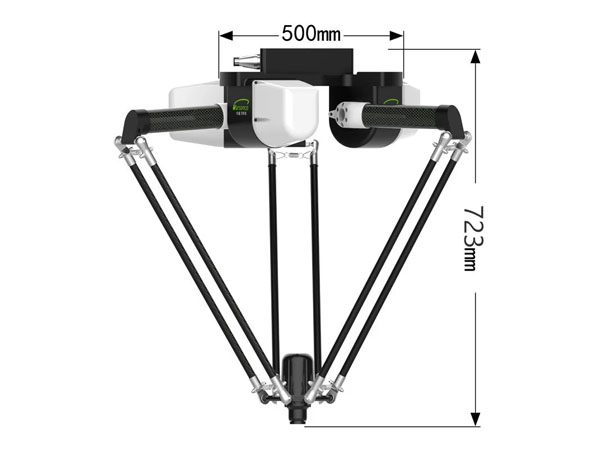

High-Speed Low Cost Delta Robot DJ Serial

VIDEO

Overview
Features
Specifications

Free A Quote

Overview

The Delta Robot - ZhiSheng Series (WSC 600DJ/800DJ/1000DJ) is a high-speed, precision automation solution designed to meet the demands of modern production environments. Engineered for efficiency and versatility, this series is ideal for applications in industries such as food and beverage, pharmaceuticals, and consumer electronics. The Delta Robot offers a modular system, easy operation, and low maintenance, making it a cost-effective choice for businesses looking to enhance their production capabilities.

Configuration
Settings	Brand
Servo Motor	Warsonco/Panasonic
Machine Reducer	Nidec corporation/green
Controller	Austria KEBA

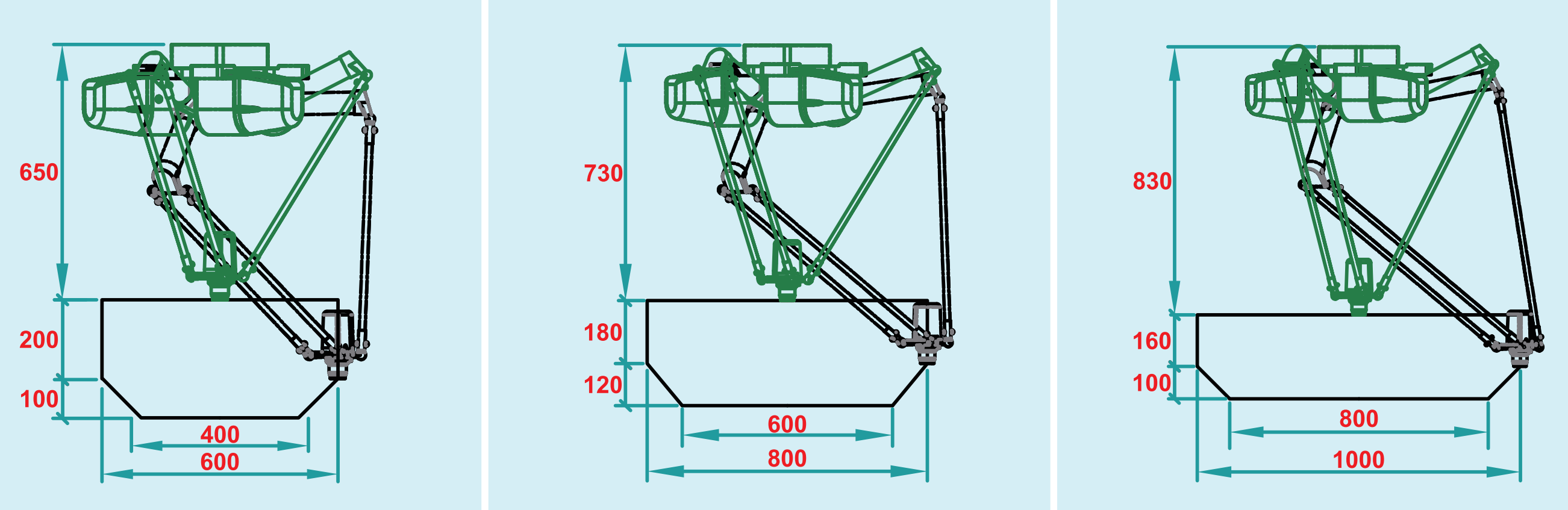

Working Range(mm)

Zhisheng Series 600DJ800Dj1000DJ

Applications:

✔ Food and Beverage Industry: Ideal for high-speed, precision packing and sorting of food and beverage products, maintaining quality standards and optimizing production efficiency.
✔ Pharmaceutical Sector: Ensures accurate and safe handling of pharmaceutical products, adhering to stringent regulatory requirements and protecting product integrity.
✔ Consumer Electronics: Efficiently manages the assembly and packaging of electronic components, enhances productivity and reducing handling times in electronics manufacturing.
✔ Logistics and Warehousing: Streamlines the sorting and packing process in distribution centers, contributing to better space utilization and faster operations.

Features

✔ High-Speed Performance: Capable of achieving speeds of up to 120 packs per minute (PPM), ensuring rapid and efficient processing in high-demand production lines.
✔ Cost-Effective Solution: Designed to provide superior performance at a competitive price point, offering excellent value for a wide range of industrial applications.
✔ User-Friendly Operation: Features an intuitive control interface that simplifies operation, allowing for quick setup and minimal training requirements.
✔ Modular System: The modular design allows for easy integration into existing production lines and flexible adaptation to changing production needs.
✔ Low Maintenance: Built for durability with minimal maintenance requirements, ensuring long-term reliability and reduced downtime.
✔ Certified Quality: ISO and CE certifications guarantee compliance with international standards, ensuring safety, quality, and reliability.
✔ Versatile Applications: Suitable for a wide range of industries, including food and beverage, pharmaceuticals, and consumer electronics, providing flexibility across multiple sectors.
✔ Warranty and Support: Comes with a 1-year warranty and free lifelong technical support, offering peace of mind and ongoing assistance.
✔ Advanced Communication Protocols: Supports multiple communication protocols, including Modbus TCP/P, EtherCAT, CAN, and RS232/485, ensuring seamless integration with various control systems.

Specifications

PARAMETERS

Model	WSC-600DJ-L3	WSC-800DJ-L3	WSC-1000DJ-L3
Power Rating	four-axis	four-axis	four-axis
Max Load(kg)	3kg	3kg	3kg
Standard Cycle Time(s)	0.4 seconds/cycle (25/305/25mm)	0.4 seconds/cycle (25/305/25mm)	0.4 seconds/cycle (25/305/25mm)
Repeat Positioning Accuracy(mm)	±0.05mm	±0.05mm	±0.05mm
Angular Positioning Accuracy	0.05°	0.05°	0.05°
Power	220V-240v 50/60Hz	220V-240v 50/60Hz	220V-240v 50/60Hz
Power Rating	2.5kw	2.5kw	2.5kw
Noise Level	<75db	<75db	<75db
Protection Level	IP54	IP54	IP54
Motor Method	AC servo drives	AC servo drives	AC servo drives
Demonstrator	7-inch demonstrator	7-inch demonstrator	7-inch demonstrator
Vision Positioning Module	Optional configuration (130W camera, lens, light Source)	Optional configuration (130W camera, lens, light Source)	Optional configuration (130W camera, lens, light Source)
Operating Instructions	PTP, LINE, PICK, PLACE	PTP, LINE, PICK, PLACE	PTP, LINE, PICK, PLACE
Installation Method	Inverted	Inverted	Inverted
Robot Weight	40kg	40kg	40kg
Playlay load 0.1kg	0.34s
Playlay load 1kg	0.38s
Working Temperature	1-40°C
Humidity Range	5%~90%(No condensation)
Life Span	20000 hours+
GW	40kg
1-3rd Axis Motor (if)	Panasonic
The Fourth Axis motor (then)	Panasonic
1-3rd Axis Reducer/Gearbox(if)	Harmonic/Nidec
The Fourth Reducer/Gearbox(then)	Leader drive
Controller/PLC	Keba
HMI	Keba
